M5 Connector
M5 Connector Cable

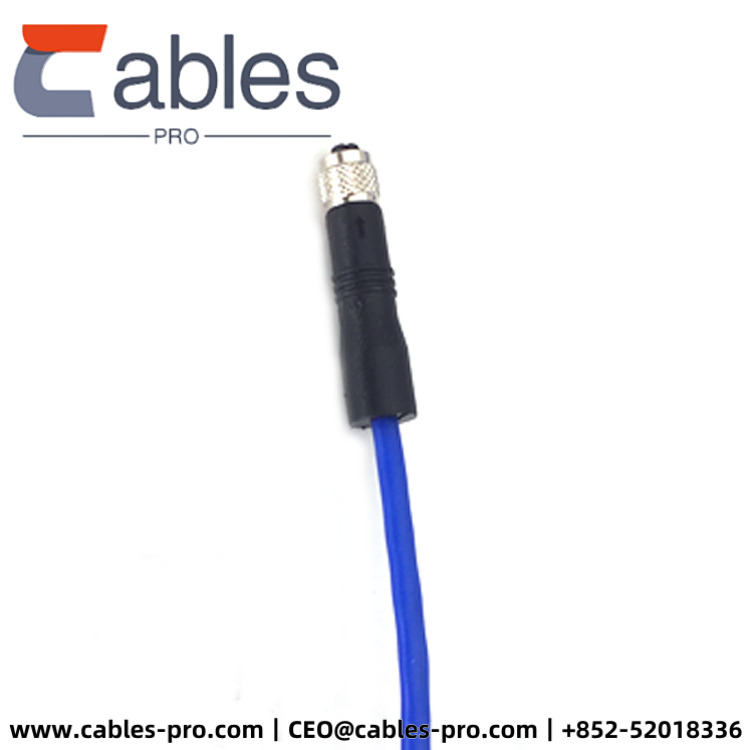

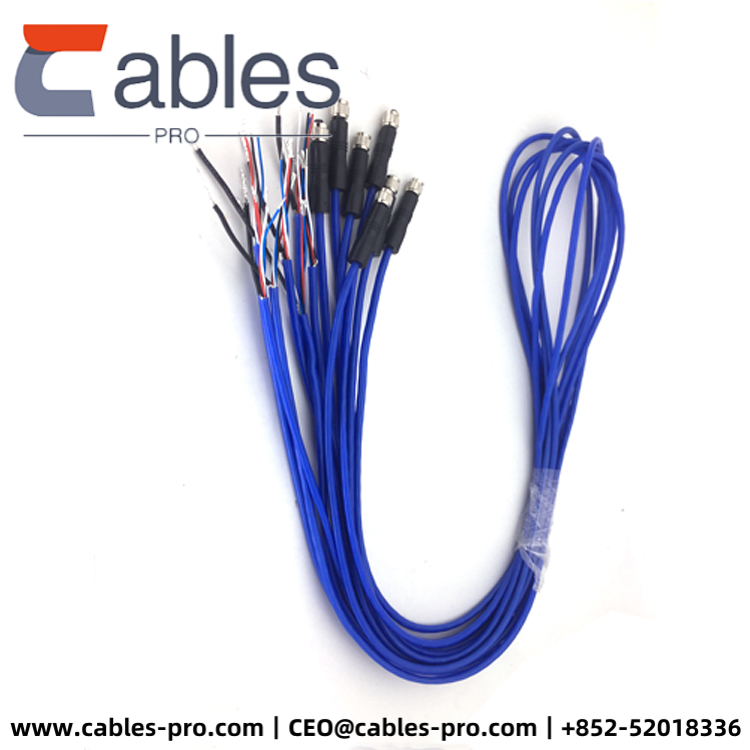

4 Contact M5 Circular Metric Connector Cable – Female, Straight Molding Type
Cables Pro is a professional manufacturer of cables and accessories, dedicated to providing high-quality products. Our M5 Connector Cable is designed to meet the needs of various industrial applications.
Specifications:
- Product series: M5 Connector Cable
- Industry standard: IEC 61076 – 2 – 105
- Connector Gender: Female
- Connector core number: 4P
- Plug Guide: Straight
- Terminal Material: Copper
- Waterproof grade: IP67
- Wiring method: welding wire
- Wire gauge: 24 – 28AWG
- Connection method: threaded connection
- Connector rubber core: PA66
- Injection material: TPU
- Rated current: 1.5A
- Rated voltage: 60V
- Insulation resistance: ≥100mΩ
- Sealing method: O type sealing ring
- Conductor resistance: ≤5mΩ
- Applicable temperature: -20° – +80°
- Wire cover: PVC/PUR
Compatibility:
This connector cable is compatible with a wide range of devices, including sensors, actuators, encoders, motors, industrial grating light curtains, factory automation process control equipment, equipment batteries, semiconductors, package label printing equipment, fieldbus systems like DeviceNet and CANopen, industrial instruments and equipment, NMEA 2000 ship electronics, rail transit, EMS circuit board assembly, LED outdoor displays, and outdoor LED lighting.
Use Cases:
The M5 Connector Cable can be used in various scenarios, such as waterproof electrical connections in outdoor and underground LED lights. Its reliable connection and good seal make it an ideal choice for industrial applications.
User Reviews:
Customers have praised the quality and performance of our M5 Connector Cable. They appreciate its durability and ease of use in different applications.
