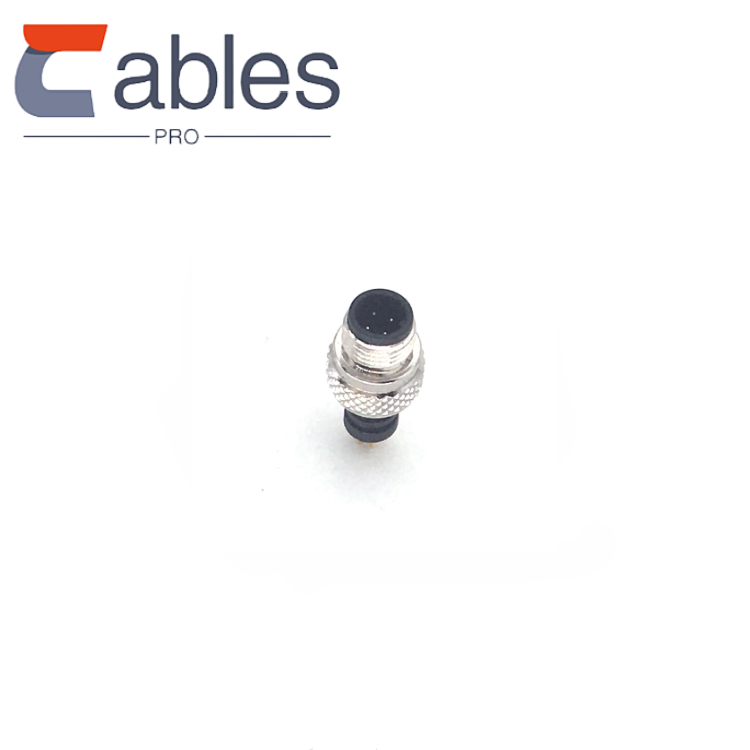

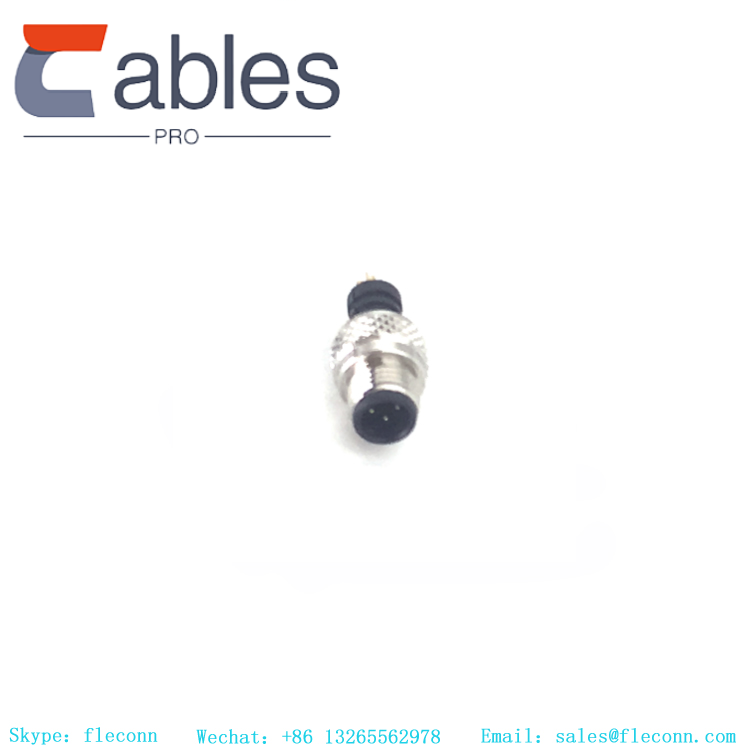

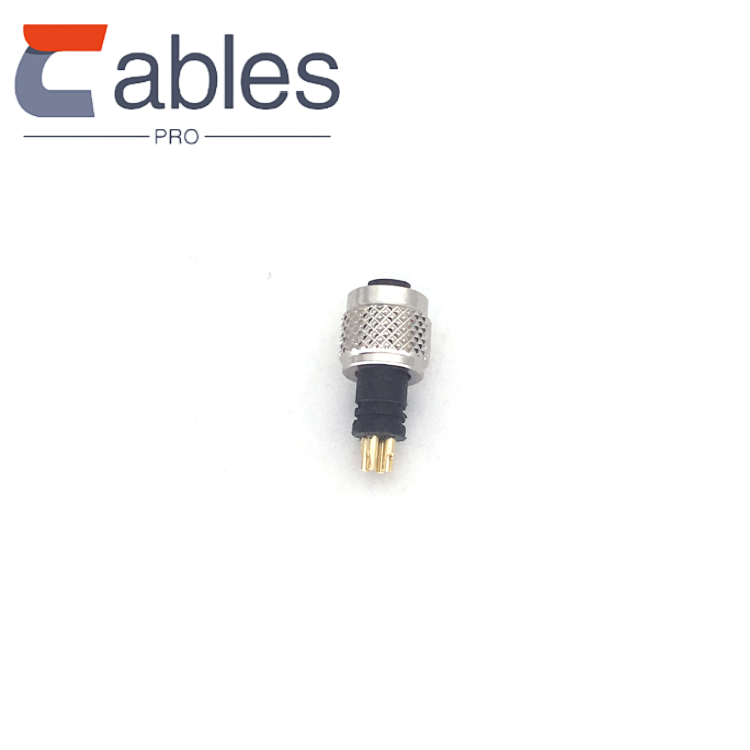

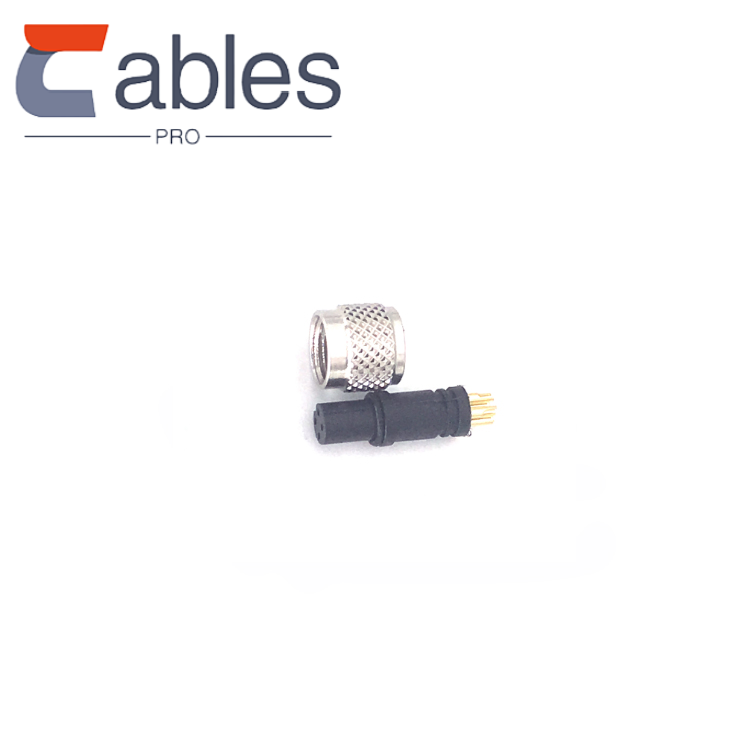

M5 4 Pin Sensor Cable Connector, IP67 IP68 Waterproof Rating
M5 connectors can be used in waterproof electrical connections such as outdoor and underground LED light. The mated male and female m5 connector connection solution has a good seal and reliable connection function. It features the following specifications:
- Product series: M5 Connector
- Wire gauge: 24 – 28AWG
- Connector Gender: Female
- Waterproof grade: IP67
- Connector core number: 4P
- Plug Guide: Straight
- Industry standard: IEC 61076 – 2 – 105
- Terminal Material: Copper
- Wiring method: welding wire
- Connection method: threaded connection
- Connector rubber core: PA66
- Injection material: TPU
- Rated current: 1.5A
- Connector conductor: copper gold plated
- Rated voltage: 60V
- Insulation resistance: ≥100mΩ
- Sealing method: O type sealing ring
- Conductor resistance: ≤5mΩ
- Applicable temperature: -20° – +80°
- Wire cover: PVC/PUR
This connector is widely applicable in various fields, including:
- Sensors, actuators, encoders, motors
- Industrial grating light curtains
- Factory automation process control
- Equipment battery, semiconductor
- Package label printing equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial instruments and equipment
- NMEA 2000 ship electronics, rail transit
- EMS circuit board assembly
- LED outdoor display, outdoor LED lighting
