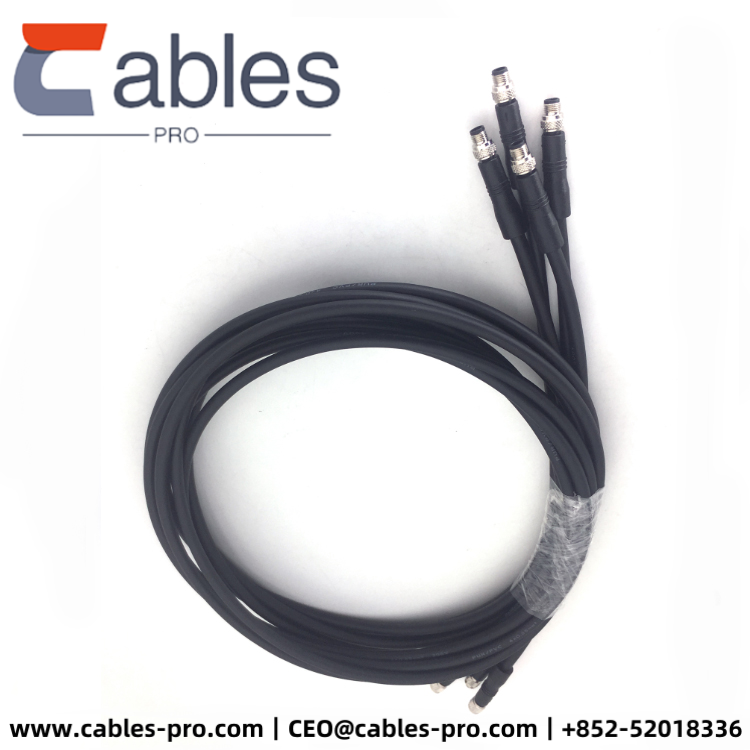

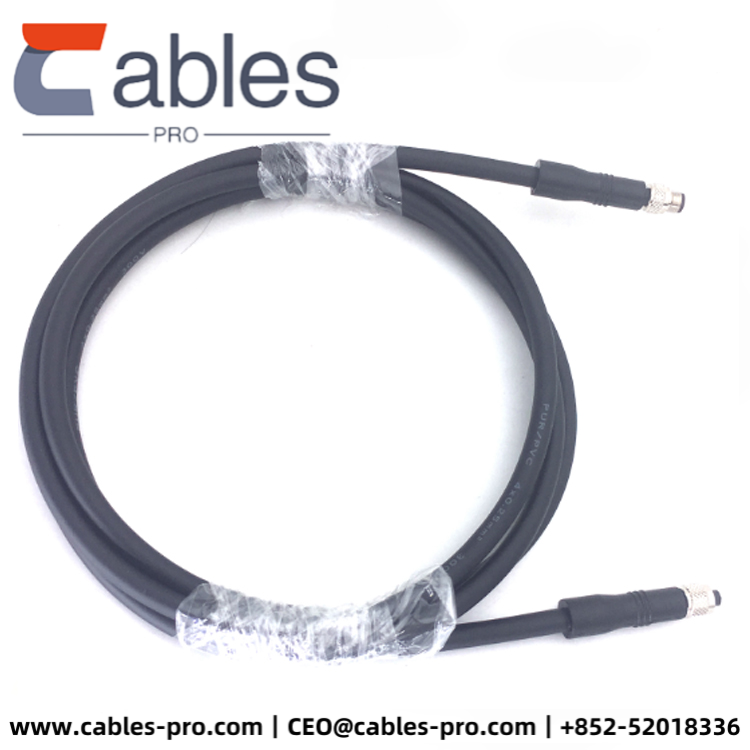

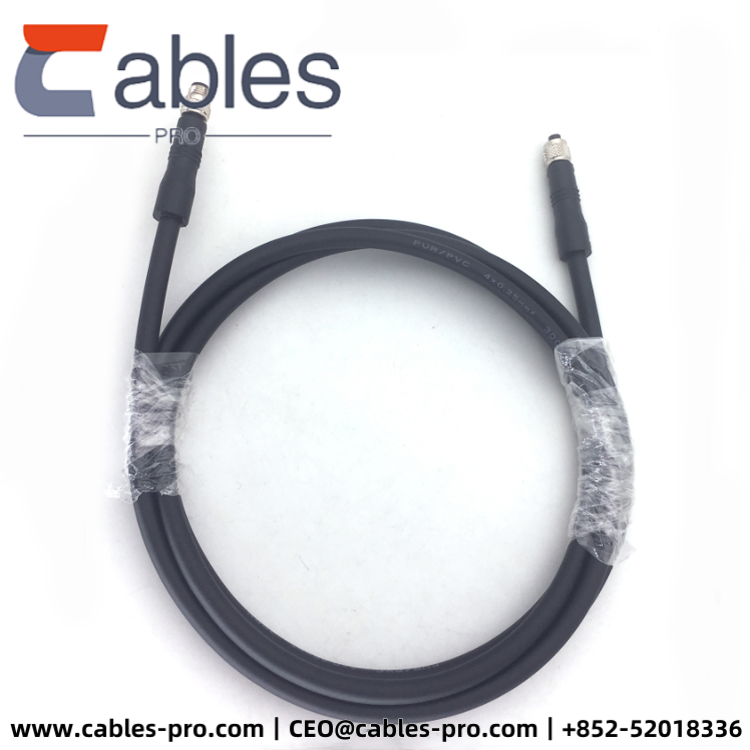

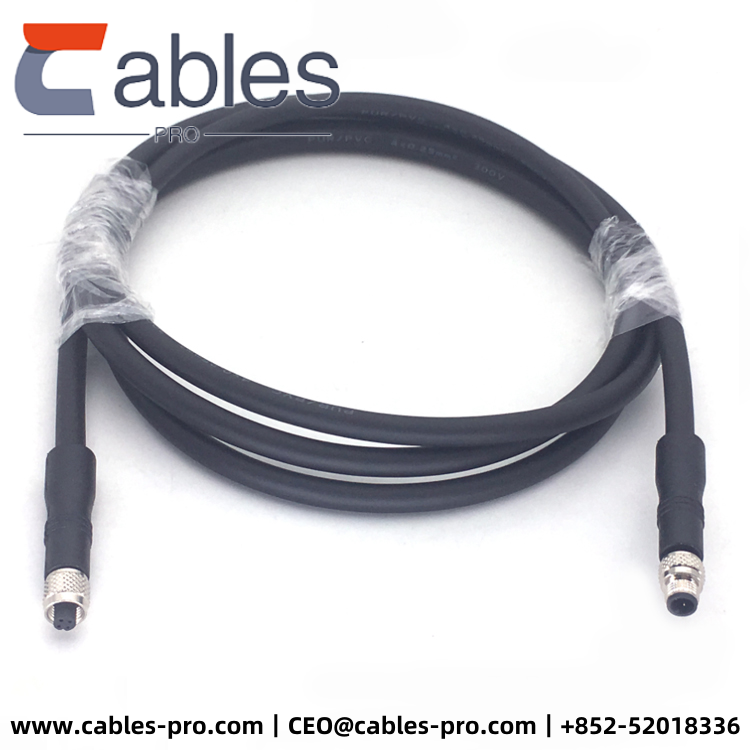

M5 2 Position 3 Contact 4 Pole Male to Female Sensor Cable
The M5 connector cable is ideal for waterproof electrical connections, including outdoor and underground LED lights. Featuring a reliable male to female connection, high-temperature nylon material, and gold-plated copper terminals, this cable ensures excellent performance in various industrial environments.
Key Features
- Product Series: M5 Connector Cable
- Wire Gauge: 24-28AWG
- Connector Gender: Female
- Waterproof Grade: IP67
- Connector Core Number: 4P
- Plug Guide: Straight
- Terminal Material: Copper, Gold-plated
- Applicable Temperature: -20° to +80°
Product Description
The M5 2 Pos 3 Contact 4 Pole Male to Female Sensor Cable offers a secure and waterproof connection, making it perfect for harsh environments. The high-temperature nylon and gold-plated terminals ensure durability and reliable performance. With an IP67 waterproof rating and excellent environmental resistance, this cable is suitable for a wide range of industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Series | M5 Connector Cable |
| Connector Gender | Female |
| Industry Standard | IEC 61076-2-105 |
| Connector Core Number | 4P |
| Plug Guide | Straight |
| Terminal Material | Copper |
| Waterproof Grade | IP67 |
| Wiring Method | Welding Wire |
| Wire Gauge | 24-28AWG |
| Connection Method | Threaded Connection |
| Connector Rubber Core | (PA66) |
| Injection Material | TPU |
| Rated Current | 1.5A |
| Connector Conductor | Copper, Gold-plated |
| Rated Voltage | 60V |
| Insulation Resistance | ≥100mΩ |
| Sealing Method | O Type Sealing Ring |
| Conductor Resistance | ≤5mΩ |
| Applicable Temperature | -20° to +80° |
| Wire Cover | PVC/PUR |
Applications
- Sensors, actuators, encoders, motors
- Industrial grating light curtains
- Factory automation process control
- Equipment battery, semiconductor
- Package label printing equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial instruments and equipment
- NMEA 2000 ship electronics, rail transit
- EMS circuit board assembly
- LED outdoor display, outdoor LED lighting
