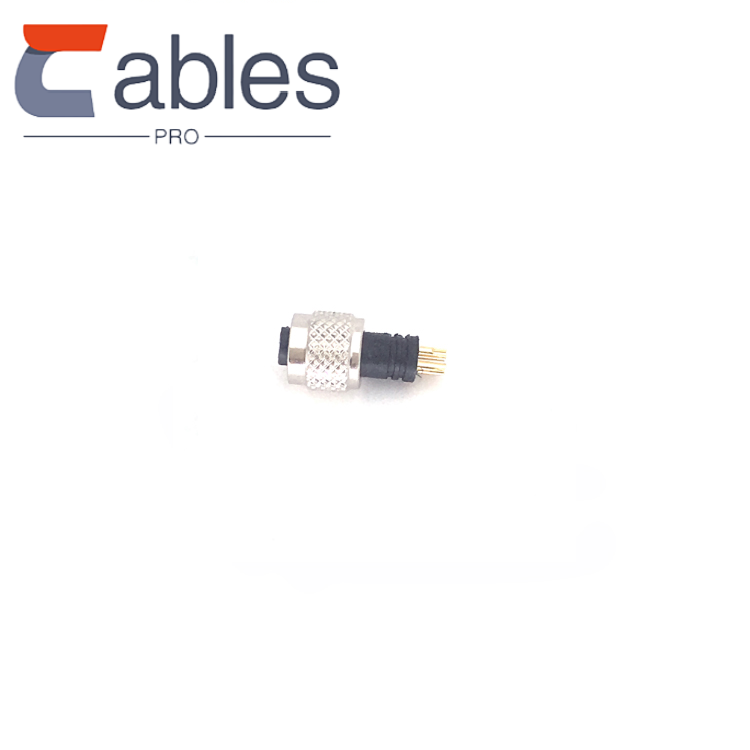

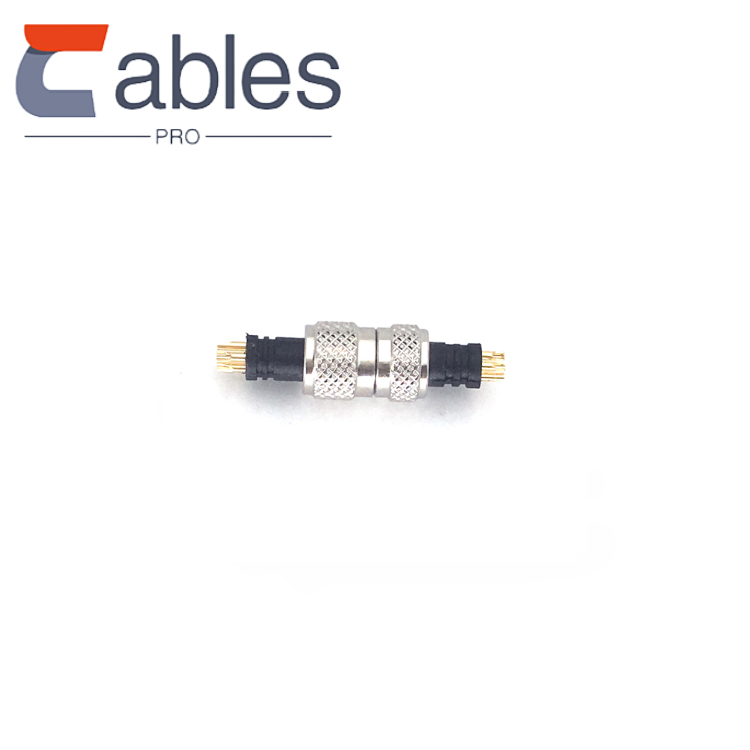

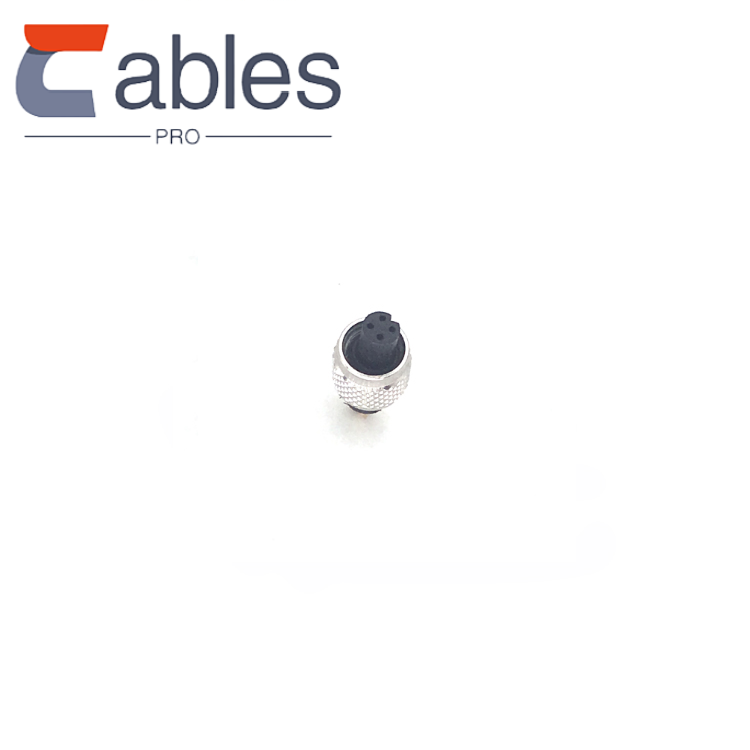

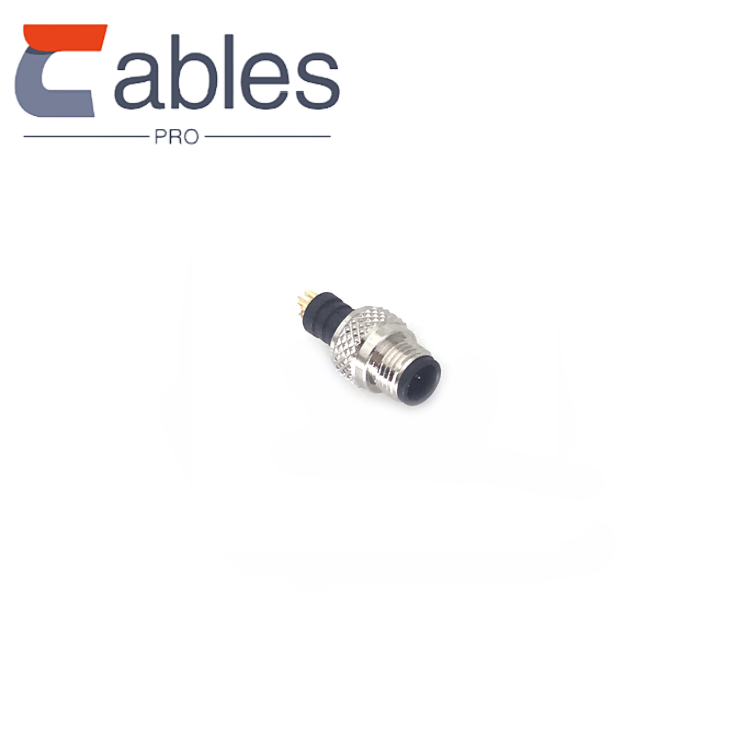

M5 3 Pin Male Connector – waterproof, High-Quality for Industrial Use
This M5 3 Pin Male Connector is designed for waterproof electrical connections, especially in outdoor and underground LED lights. It offers a reliable connection solution with excellent sealing performance.
- High-temperature nylon plastic with a CTI above 120 degrees
- Hardware terminal made of high-fatigue resistance, phosphor, or beryllium copper alloy material
- Gold plating process for corrosion resistance and excellent plug performance
- Fluorine glue waterproof ring for extreme cold and high-temperature resistance
- IP67 waterproof grade for reliable waterproof performance
This connector is a mature product in industrial use, providing strong environmental performance.
Product Parameters
- Product Series: M5 Connector
- Connector Gender: Male
- Industry Standard: IEC 61076-2-105
- Connector Core Number: 3P
- Plug Guide: Straight
- Terminal Material: Copper
- Waterproof Grade: IP67
- Wiring Method: Soldering
- Wire Gauge: 24-28AWG
- Connection Method: Threaded connection
- Connector Rubber Core: PA66
- Injection Material: TPU
- Rated Current: 1.5A
- Connector Conductor: Copper gold plated
- Rated Voltage: 60V
- Insulation Resistance: ≥100mΩ
- Sealing Method: O type sealing ring
- Conductor Resistance: ≤5mΩ
- Applicable Temperature: -20°- +80°
- Wire Cover: PVC/PUR
Applications
- Sensors, actuators, encoders, motors
- Industrial grating light curtains
- Factory automation process control
- Equipment battery, semiconductor
- Package label printing equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial instruments and equipment
- NMEA 2000 ship electronics, rail transit
- EMS circuit board assembly
- LED outdoor display, outdoor LED lighting
Choose our M5 3 Pin Male Connector for reliable and high-quality connections in your industrial applications.
