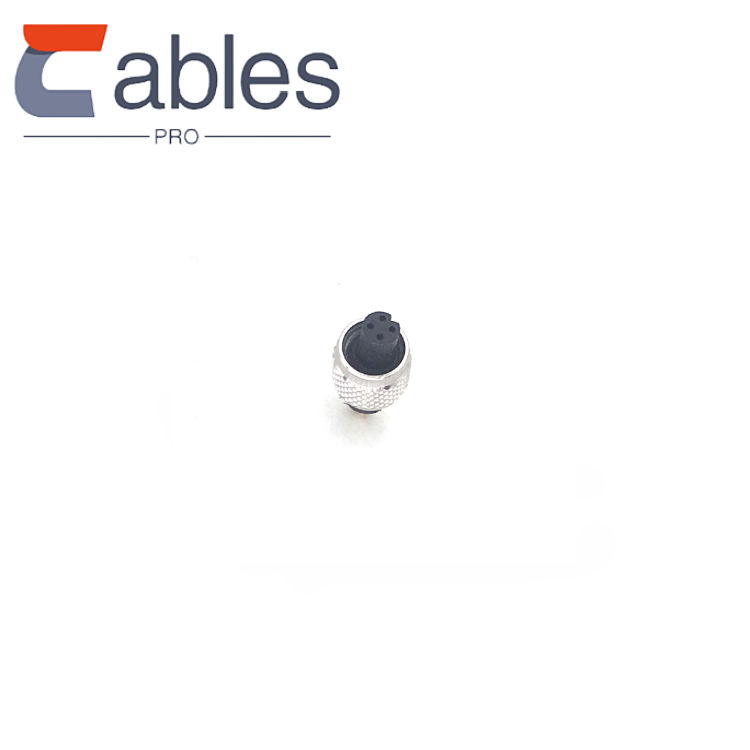

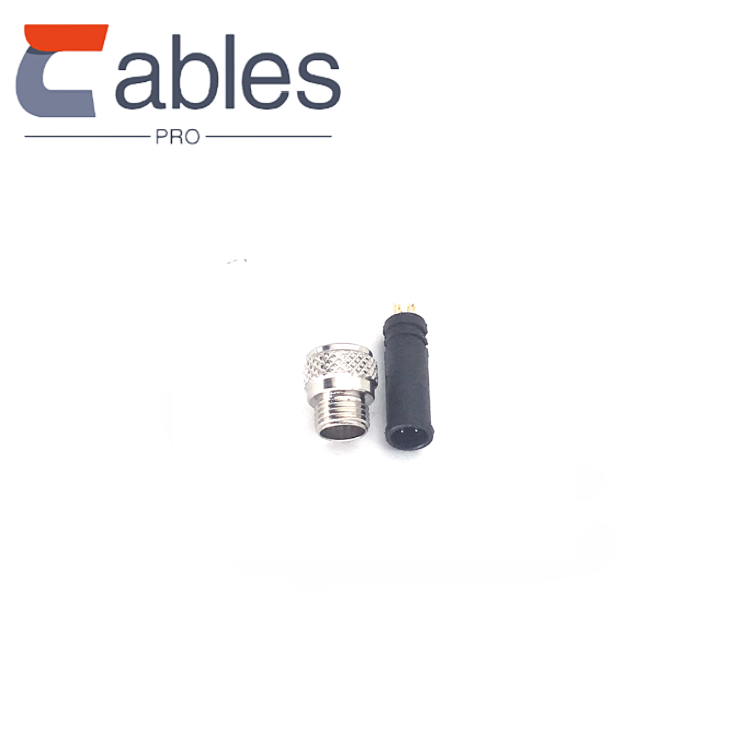

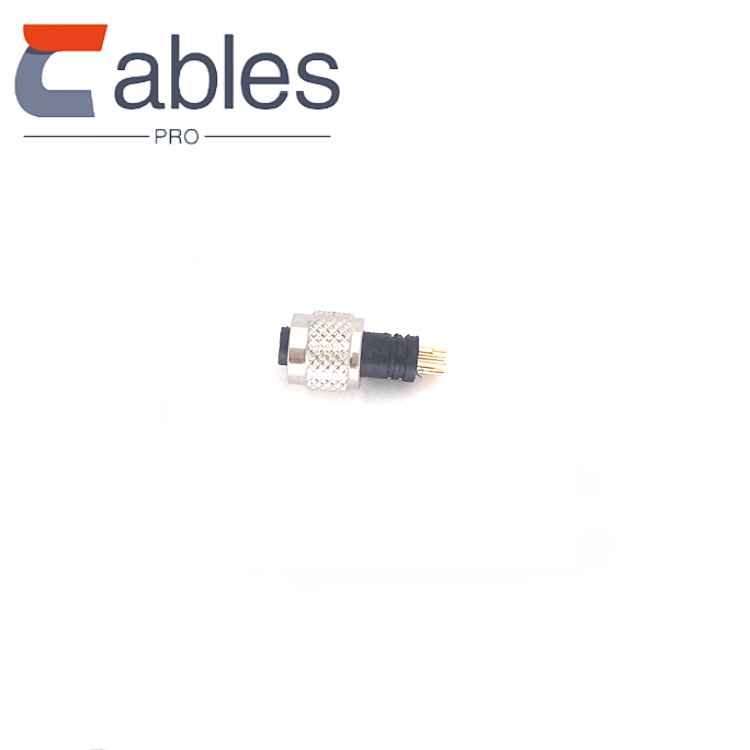

M5 3Pin Female Cable Connector
The M5 connectors are widely used in waterproof electrical connections, especially for outdoor and underground LED lights. The mated male and female M5 connector connection solution provides a good seal and reliable connection. Made of high-quality materials, this connector features excellent waterproof and environmental performance.
Product Parameters
- Product series: M5 Connector
- Connector Gender: Female
- Industry standard: IEC 61076-2-105
- Connector core number: 3P
- Plug Guide: Straight
- Terminal Material: Copper
- Waterproof grade: IP67
- Wiring method: Welding wire
- Wire gauge: 24-28AWG
- Connection method: Threaded connection
- Connector rubber core: PA66
- Injection material: TPU
- Rated current: 1.5A
- Connector conductor: Copper gold plated
- Rated voltage: 60V
- Insulation resistance: ≥100mΩ
- Sealing method: O type sealing ring
- Conductor resistance: ≤5mΩ
- Applicable temperature: -20°- +80°
- Wire cover: PVC/PUR
Applications
- Sensors, actuators, encoders, motors
- Industrial grating light curtains
- Factory automation process control
- Equipment battery, semiconductor
- Package label printing equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial instruments and equipment
- NMEA 2000 ship electronics, rail transit
- EMS circuit board assembly
- LED outdoor display, outdoor LED lighting
