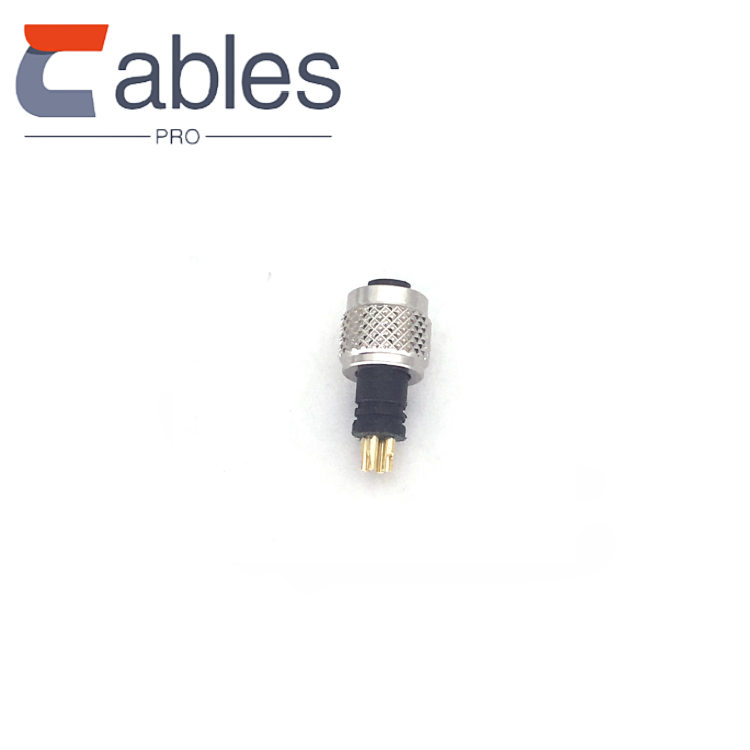

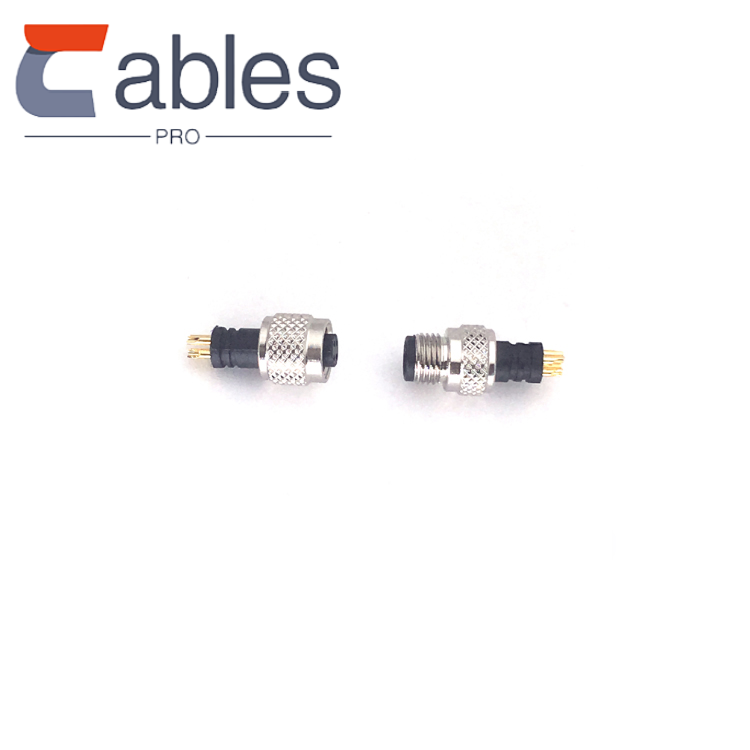

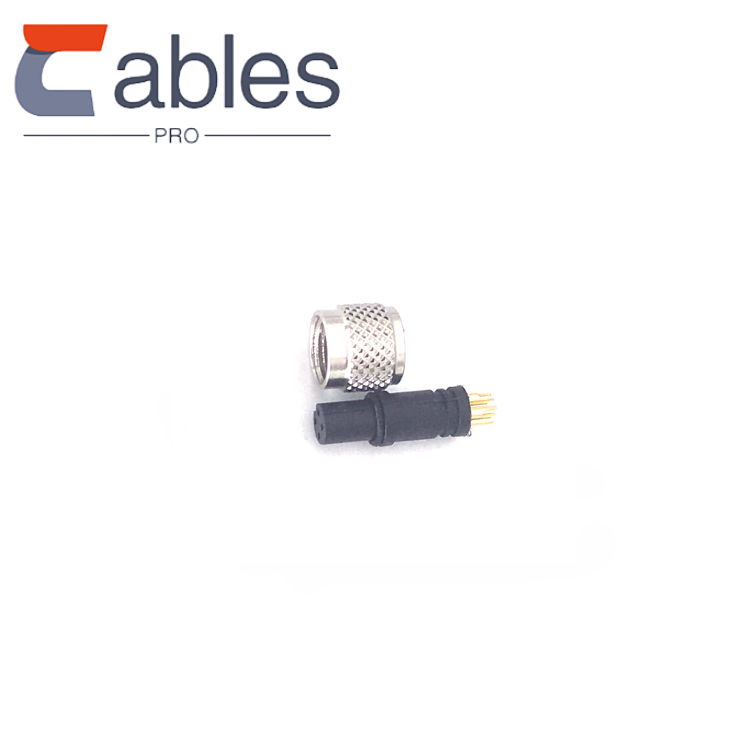

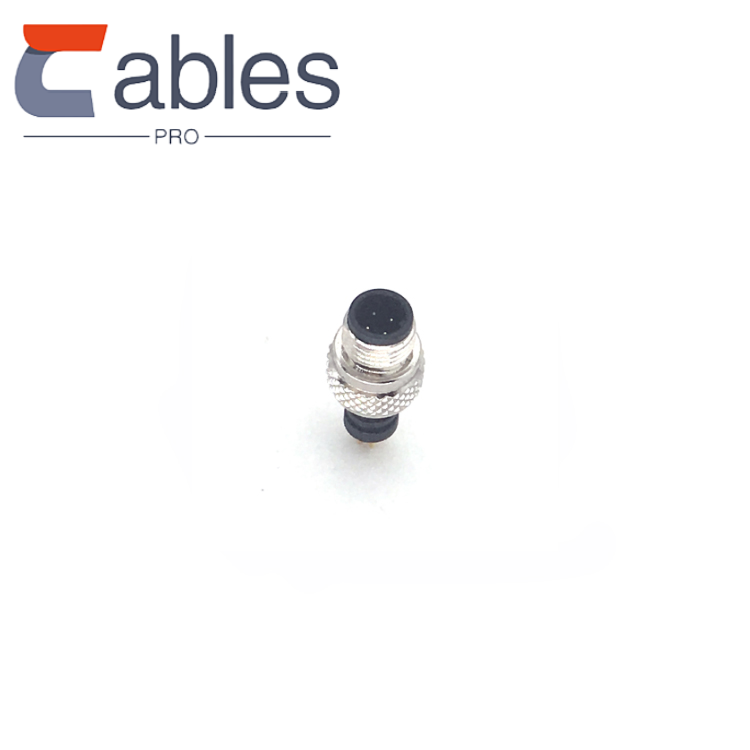

M5 4-Pin Straight Plug Waterproof Cable Connector
The M5 connector can be used for waterproof electrical connections such as outdoor and underground LED lights. This male-female M5 connector connection solution has good sealing and reliable connection functions in terms of materials. The plastic uses high-temperature nylon with a CTI of over 120 degrees; the hardware terminal uses high-fatigue resistance, phosphor, or beryllium copper alloy materials, and the electroplating uses a gold plating process, which has excellent corrosion resistance. The plug performance is very excellent, the waterproof ring uses fluorine rubber, which can withstand extreme cold of -40 degrees and high temperatures of over 150 degrees. The waterproof and environmental performance is very strong, making it a more mature product in industrial applications.
Product Parameters
- Product Series: M5 Connector
- Connector Gender: Male and Female
- Industry Standard: IEC 61076-2-105
- Pin Number: 4P
- Plug Guide: Straight
- Terminal Material: Copper
- Waterproof Grade: IP67
- Wiring Method: Welding Wire
- Wire Gauge: 24-28AWG
- Connection Method: Threaded Connection
- Connector Rubber Core: PA66
- Injection Material: TPU
- Rated Current: 1.5A
- Connector Conductor: Copper Gold Plated
- Rated Voltage: 60V
- Insulation Resistance: ≥100mΩ
- Sealing Method: O-type Sealing Ring
- Conductor Resistance: ≤5mΩ
- Applicable Temperature: -20°- +80°
- Wire Cover: PVC/PUR
Applications
- Sensors, Actuators, Encoders, Motors
- Industrial Grating Light Curtains
- Factory Automation Process Control
- Equipment Battery, Semiconductor
- Package Label Printing Equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial Instruments and Equipment
- NMEA 2000 Marine Electronics, Rail Transit
- EMS Circuit Board Assembly
- LED Outdoor displays, outdoor LED lighting
