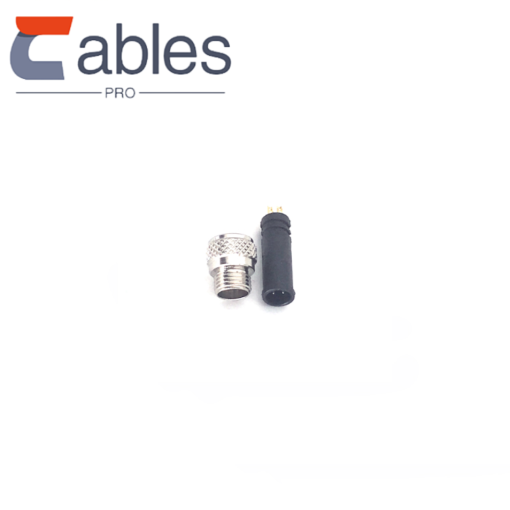

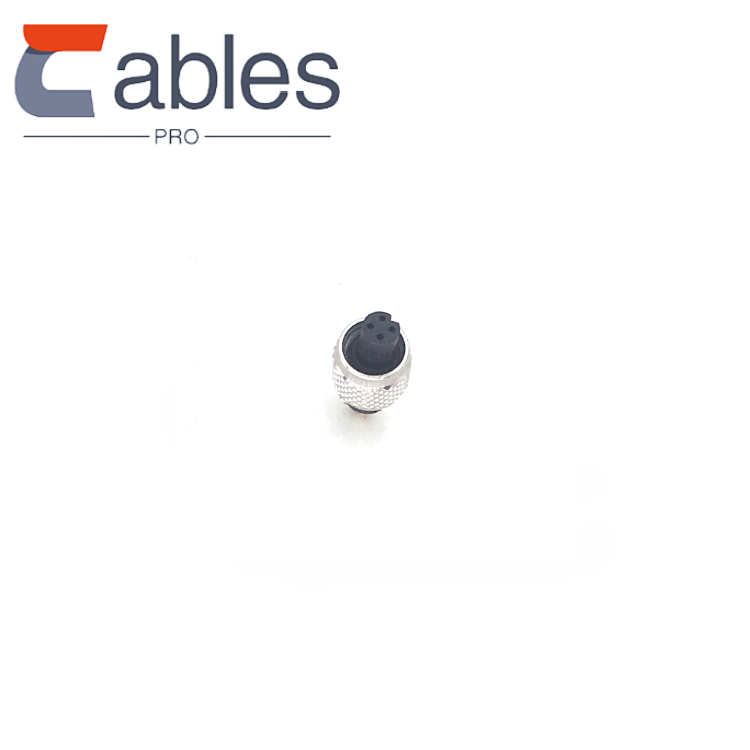

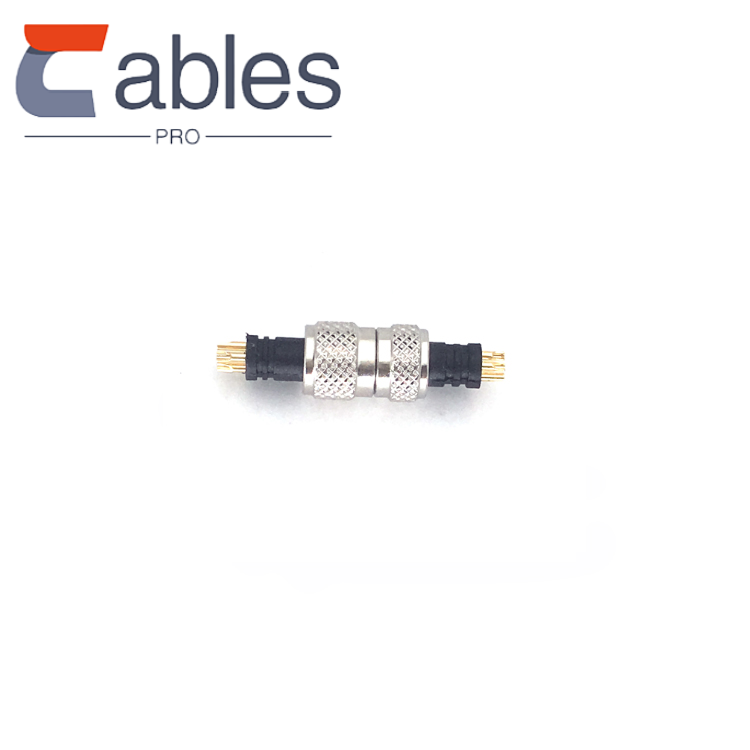

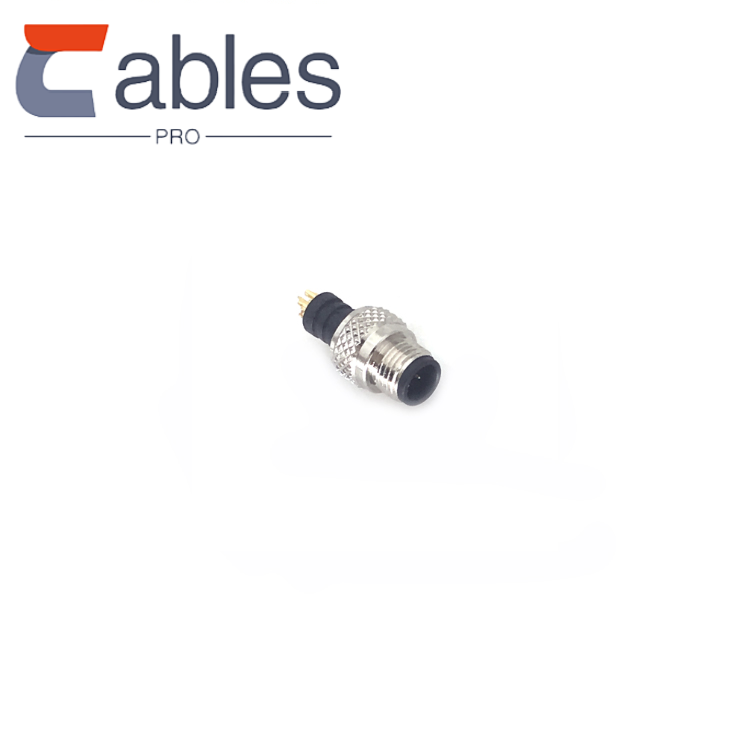

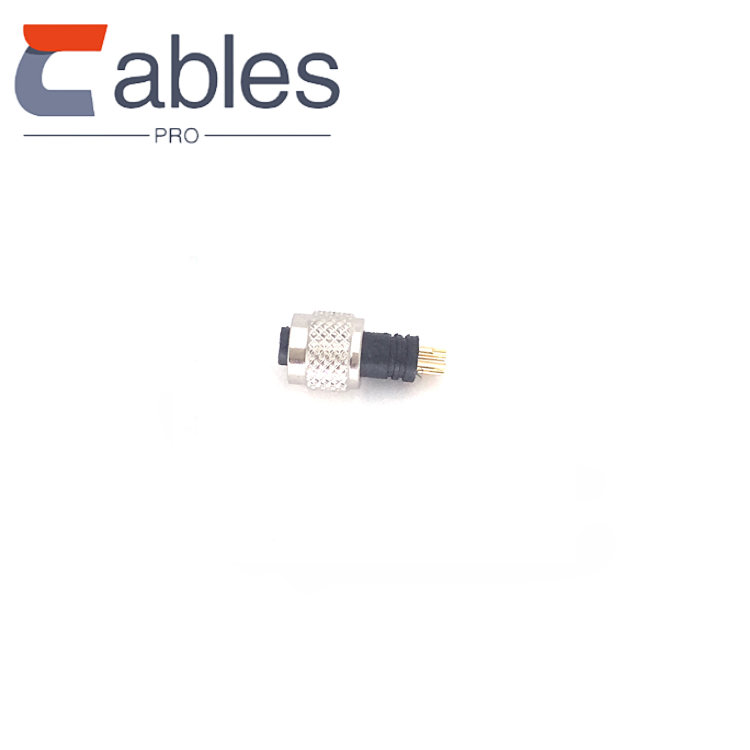

M5 2-Pin Male Cable Connector
The M5 connector is widely used in waterproof electrical connections, such as outdoor and underground LED lights. Our M5 2-pin male cable connector is made of high-quality materials, providing outstanding waterproof performance and reliable connection.
Product Features
- Waterproof rating up to IP67, suitable for use in harsh environments
- Made of high-temperature nylon plastic with a CTI of over 120 degrees
- Hardware terminals use high-fatigue resistance, phosphor, or beryllium copper alloy materials, with a gold plating process for excellent corrosion resistance
- Waterproof ring made of fluorine rubber, with a cold resistance of up to minus 40 degrees and a high-temperature resistance of over 150 degrees
- Strong environmental performance, making it a mature product in industrial applications
Product Parameters
- Product Series: M5 Connector
- Connector Gender: Male
- Industry Standard: IEC 61076-2-105
- Pin Number: 2P
- Plug Guide: Straight
- Terminal Material: Copper
- Waterproof Grade: IP67
- Wiring Method: Welding
- Wire Gauge: 24-28AWG
- Connection Method: Threaded Connection
- Connector Rubber Core: PA66
- Injection Material: TPU
- Rated Current: 1.5A
- Connector Conductor: Copper Gold Plated
- Rated Voltage: 60V
- Insulation Resistance: ≥100mΩ
- Sealing Method: O-type Sealing Ring
- Conductor Resistance: ≤5mΩ
- Applicable Temperature: -20°-+80°
- Wire Cover: PVC/PUR
Applications
- Sensors, actuators, encoders, motors
- Industrial grating light curtains
- Factory automation process control
- Equipment batteries, semiconductors
- Package label printing equipment
- Fieldbus: DeviceNet, CANopen, etc.
- Industrial instrumentation and equipment
- NMEA 2000 marine electronics, rail transit
- EMS circuit board assembly
- LED outdoor displays, outdoor LED lighting
