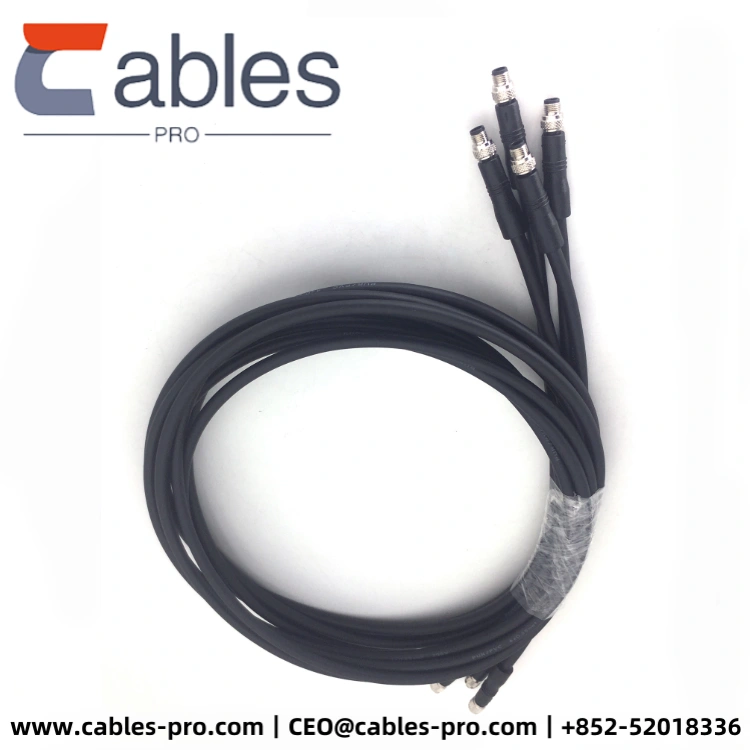

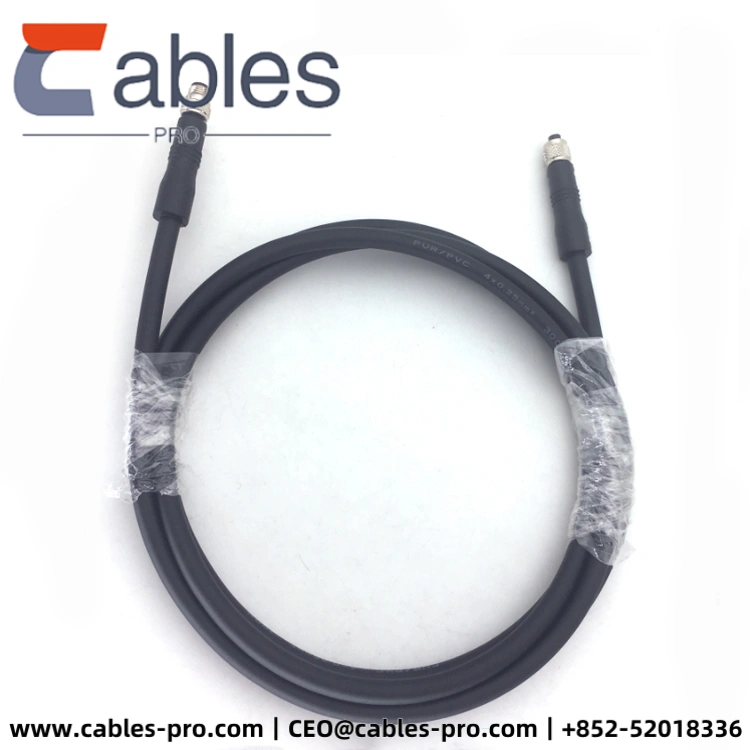

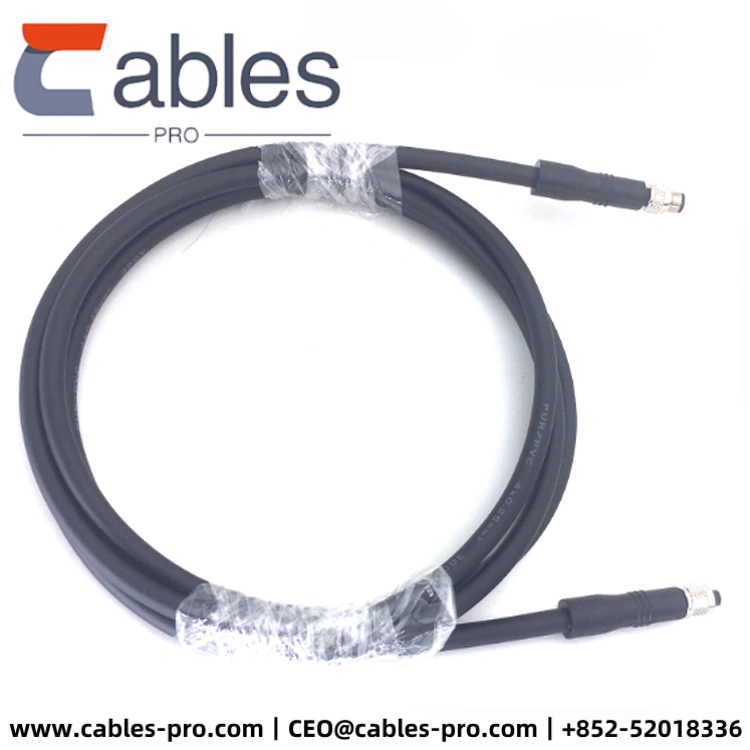

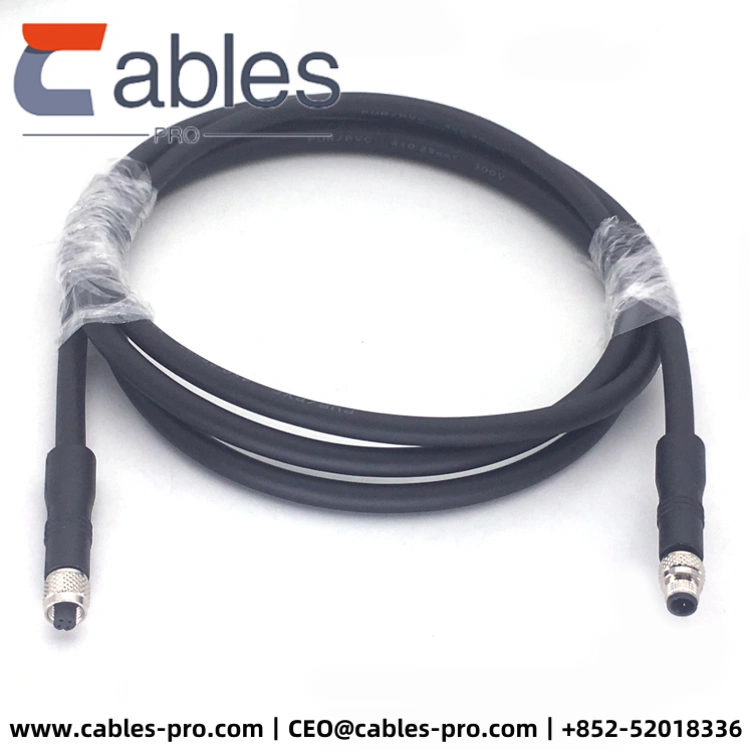

M5 4 Pin Male to Female Cable

IP67 IP68 Protection Rating

The M5 4 Pin Male to Female Cable provides excellent waterproof protection with its IP67 IP68 rating. Designed for reliable electrical connections in harsh environments, this cable is perfect for outdoor and industrial applications.

Product Description:

M5 connectors are ideal for waterproof electrical connections, such as outdoor and underground LED lights. The male and female M5 connectors ensure a secure and reliable connection, using high-temperature nylon plastic, CTI above 120 degrees, and gold-plated copper alloy terminals for superior performance. The waterproof ring made of fluorine rubber offers extreme cold resistance to -40°C and high temperature resistance up to 150°C, making it a robust choice for industrial use.

Product Parameters:

• Product Series: M5 Connector Cable
• Wire Gauge: 24-28AWG
• Connector Gender: Female
• Waterproof Grade: IP67
• Connector Core Number: 4P
• Plug Guide: Straight
• Terminal Material: Copper
• Wiring Method: Welding Wire
• Connection Method: Threaded Connection
• Connector Rubber Core: PA66
• Injection Material: TPU
• Rated Current: 1.5A
• Rated Voltage: 60V
• Insulation Resistance: ≥100mΩ
• Conductor Resistance: ≤5mΩ
• Sealing Method: O Type Sealing Ring
• Applicable Temperature: -20°C to +80°C
• Wire Cover: PVC/PUR

Applications:

• Sensors, actuators, encoders, motors
• Industrial grating light curtains
• Factory automation process control
• Equipment battery, semiconductor
• Package label printing equipment
• Fieldbus: DeviceNet, CANopen, etc.
• Industrial instruments and equipment
• NMEA 2000 ship electronics, rail transit
• EMS circuit board assembly
• LED outdoor display, outdoor LED lighting
